Robotis - X430-210 Gear/Bearing Set

SKU
R-903-0253-000
Brand
Robotis
Quick Overview
Robotis - X430-210 Gear/Bearing Set. Can be replaced directly when existing gears are worn out
£56.30 £46.92

Secured and trusted checkout with

X430-210 Gear/Bearing Set

■ Basic Features

Gear set for Dynamixel XH430/XM430 – Gear Ratio: 210 : 1

Can be replaced directly when existing gears are worn out.

Made with metal and specially coated to strengthen endurance and durability of abrasion.

Exclusive magnet for non-contact absolute encoder is attached to the wheel gear.

Two ball bearings are included.

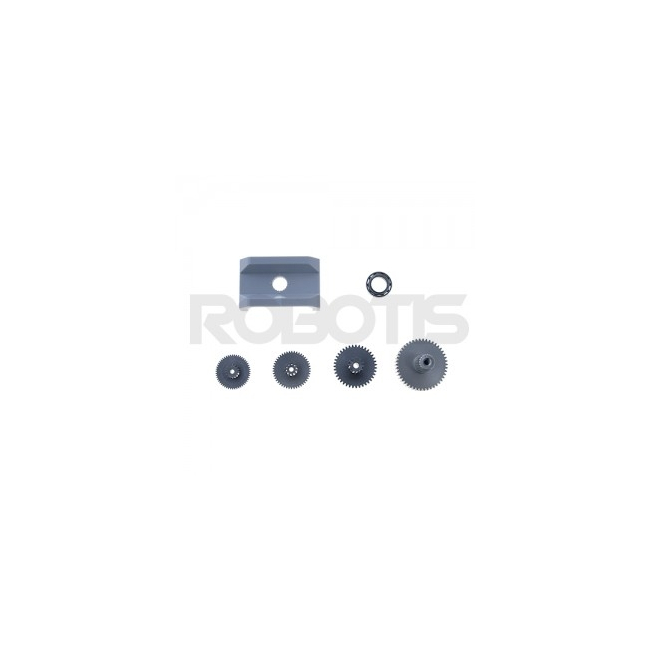

■ Package Contents

Description

Quantity

Gear

X430 Gear #1 (for 210)

1

X430 Gear #2 (for 210)

1

X430 Gear #3

1

X430 Wheel Gear

1

Etc

Grease

1

Calibration Adaptor (for X430)

1

Ball Bearing





Gear Replacement Procedure

Gear Calibration Procedure

■ Compatible Products

DYNAMIXEL

Gear/Bearing Set

X430-350

X430-210

XH430-W350-R

O

XH430-W350-T

O

XH430-W210-R

O

XH430-W210-T

O

XH430-V350-R

O

XH430-V210-R

O

XM430-W350-R

O

XM430-W350-T

O

XM430-W210-R

O

XM430-W210-T

O

** Check the gear ratio of the Dynamixel’s gear to replace.



■ Caution

Two ball bearings are used for the wheel gears.

The bearing of the bottom wheel gear is connected when shipped.

When replacing the gear, assemble after connecting the top wheel gear.

It is possible to recycle the used bearings, but it is recommended to use new ones because of the performance degradation due to abrasion, debris, etc.

Since Dynamixel X series use non-contact magnetic encoders, you will have to calibrate to align the initial position after gear replacement.

Use R+Manager2.0 to process the calibration along with the calibration adapter.

These are not compatible with DX/RX/MX series.
