Robotis - DYNAMIXEL XW540-T140-R Servo

In stock
UK WAREHOUSE 2 in stock
SKU
R-902-0160-000
Brand
Robotis
Quick Overview

The NEW waterproof Servos are here!

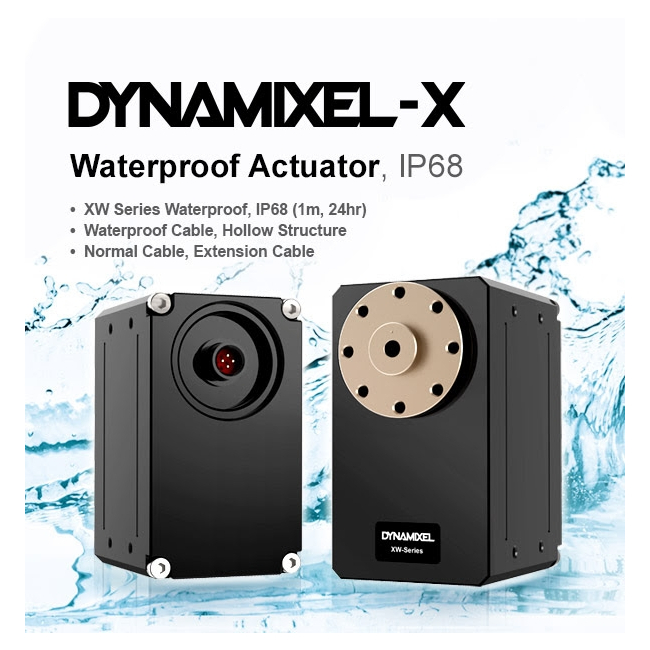

DYNAMIXEL XW Series - Waterproof Servo - IP68

The DYNAMIXEL X-Series is a line-up of high-performance networked actuators. Improved Torque, Compact Design, Enhanced Durability, and Expandability.

£861.90 £718.25

Secured and trusted checkout with

Basic Features

  • Waterproof - IP68 (1m, 24H)
  • Waterproof cable, hollow stucture
  • Normal Cable, Extension Cable
  • Improved Torque, Compact Design
  • Enhanced Durability and Expandability
  • Hollow Back Case Minimizes Cable Stress (3-Way Wiring)
  • Frames Directly Screwed onto the Case (No Nuts Needed)
  • Improved Aluminum Case Heat Sink
  • Operating Modes
  • Current-Based Torque Control (4096 steps, 2.69mA/step)
  • Profile Control for Smooth Motion Planning
  • Trajectory Data and Moving Status (In-Position, Following Error, etc.)
  • Energy Efficient (Standby Current Reduced from 100mA to 40mA)


  • Model:XW540-T140-R
    Weight :185g
    Torque :6.9 N·m [Stall torque]
    Speed :72 rpm [No load speed]
    Dimensions:33.5 X 58.5 X 44 (WⅹHⅹD) [mm]
    Motor:Coreless
    IP68 (1m, 24hr)


    For more detailed information, please visit the Product Information page.

    Performance Graph



    The Max Torque and the Stall Torque of Performance Graph are different in measurement methods. Stall torque is a measured value of the momentary torque that it can reach. This is generally how RC servos are measured. The Performance graph is also called as N-T curves, which is measured with the gradually increasing load. The actual motor operation environment is closer to the performance graph, not stall torque method. For this reason, the performance graph is broadly used in the industrial field. Generally, Max Torque of the Performance Graph is less than the Stall Torque.


    Specifications

    ItemSpecifications
    MCUARM CORTEX-M3 (72 [MHz], 32Bit)
    Position SensorContactless absolute encoder (12Bit, 360 [°])
    Maker : ams(www.ams.com), Part No : AS5045
    MotorCoreless(Maxon)
    Baud Rate9,600 [bps] ~ 4.5 [Mbps]
    Control AlgorithmPID control
    Resolution4096 [pulse/rev]
    Backlash15 [arcmin] (0.25 [°])
    Operating ModesCurrent Control Mode
    Velcoity Control Mode
    Position Control Mode (0 ~ 360 [°])
    Extended Position Control Mode (Multi-turn)
    Current-based Position Control Mode
    PWM Control Mode (Voltage Control Mode)
    Weight185 g
    Dimensions (W x H x D)33.5 x 58.5 x 45.9 mm
    Gear Ratio145.6 : 1
    Stall Torque6.4 [N.m] (at 11.1 [V], 4.5 [A])
    6.9 [N.m] (at 12.0 [V], 4.9 [A])
    8.3 [N.m] (at 14.8 [V], 5.9 [A])
    No Load Speed67 [rev/min] (at 11.1 [V]
    72 [rev/min] (at 12.0 [V]
    88 [rev/min] (at 14.8 [V])
    Radial Load40 [N] (10 [mm] away from the horn)
    Axial Load20 [N]
    Operating Temperature-5 ~ +80 [°C]
    Ingress Protection ratingIP 68
    Input Voltage10.0 ~ 14.8 [V] (Recommended : 12.0 [V])
    Command SignalDigital Packet
    Protocol TypeRS485 Asynchronous Serial Communication
    (8bit, 1stop, No Parity)
    Physical ConnectionRS485 Multidrop Bus
    ID253 ID (0 ~ 252)
    FeedbackPosition, Velocity, Current, Realtime tick, Trajectory, Temperature, Input Voltage, etc
    Part MaterialFull Metal Gear / Full Metal Case
    Standby Current40 [mA]


    Package Components

    XW540-T140-R1
    HN13-N1051
    Robot Cable-WP 1000mm1
    Robot Cable-WP 1000mm(Extension)1
    Wrench Bolt WB M2.5x516
    Wrench Bolt WB M2.5x410
    Wrench Bolt WB M3x101


    Compatible Products

    Controller : OpenCM9.04 485 Expansion Board, OpenCR1.0

    Interface : USB2Dynamixel, U2D2



    Factory Default Settings

    ID : 1

    Baud Rate : 57600bps

    (User can change various settings including ID and baud rate according to environment)



    Waterproof Cabling



    Performance Comparison



    Cautions

    DYNAMIXEL XW series use a waterproof cable.

    One side has a waterproof connector and the other side has a JST connector.

    Extension cable has waterproof connectors for both sides.

    The OpenCR controller has a JST connector for direct connection, but since the OpenCM9.04 + OpenCM 485 expansion board only has a Molex connector, a conversion cable must be used by utilizing U2D2 PHB.



    Links

  • e-Manual
  • Drawing
  • Software
  • Compatibility Guide
  • Selection Guide
  • DYNAMIXEL SDK
