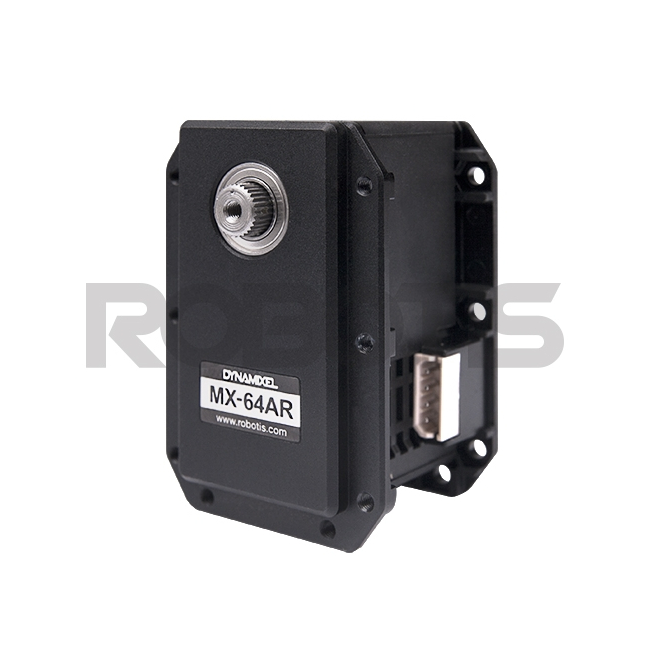

Robotis - Dynamixel MX-64AR Servo Refurbished

SKU
R-MX-64AR-REF2
Brand
Robotis
Quick Overview
Refurbished Robotis - Dynamixel MX-64AR (Aluminium front case) Used with cosmetic damage, Servo only, no box, no horn FULLY TESTED. The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution.
Special Price £181.62 £151.35 Regular Price £302.70

Secured and trusted checkout with

Refurbished Robotis - Dynamixel MX-64AR Servo

Used with cosmetic damage, servo ONLY, no box, no horn FULLY TESTED


Robotis - Dynamixel MX-64AR (Aluminium front case)

The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution.

Dynamixel Servos are connected using a Daisy Chain mechanism and are queried and controlled with an advanced Serial protocol. Over 50 Read/Write parameters are available including Position feedback, Load feedback and PID tuning.

Compared with the standard MX-64R this newer version comes with improved heat dissipation, threaded holes in the front for easy assembly and maintains the same dimensions so you can use the same frames as before.

Features:

  • Decreased noise and improved protection against heat
  • Front screw threads are already threaded for easy bolt assembly
  • Same dimensions as the existing DYNAMIXEL M-series (option frames are compatible)
  • Advanced durability, degree of precision, and wider control zone were achieved thanks to the newly applied contactless absolute encoder
  • 360 degrees position control without dead zone
  • 4,096 precise resolution by 0.088 degrees
  • Speed control at wheel mode
  • Reliability and accuracy were advanced in the position control through PID control
  • High baud rate up to 4.5Mbps
  • TTLlevel communication


Specifications:

Weight

135g

Dimension

40.2mm x 61.1mm x 41mm

Gear Ratio

200 : 1

Operation Voltage (V)

11

12

14.8

Stall Torque (N.m)

5.5

6

7.3

Stall Current (A)

3.9

4.1

5.2

No Load Speed (RPM)

58

63

78

Motor

Maxon Motor

Minimum Control Angle

About 0.088 degrees x 4,096

Operating Range

Actuator Mode : 360 degrees
Wheel Mode : Endless turn

Operating Voltage

10~14.8V (Recommended voltage : 12V)

Operating Temperature

-5°C ~ 80°C

Command Signal

Digital Packet

Protocol

Half duplex Asynchronous Serial Communication
(8bit,1stop, No Parity)

Link (physical)

RS485 Multi Drop (daisy chain type connector)

ID

254 ID (0~253)

Baud Rate

8000bps ~ 4.5Mbps

Feedback Functions

Position, Temperature, Load, Input Voltage, etc.

Material

Case : Engineering Plastic
Gear : Full Metal

Positioin Sensor

Contactless absolute encoder

Compatible Products

Frame Purchase Guide

Control Environment

Compatible horns and frames
