Robotis - Dynamixel AX-18A 6pcs Bulk
£541.60
£451.33
Robotis - Dynamixel AX-18A 6pcs Bulk. The AX-18A is a Serially Controlled servo that provides some 50 commands and feedback parameters to allow complete control over your robot
application.
The Serial protocol is daisy chained, meaning several servos can be connected to each other in a chain and offer several compliance and sensing parameters that can be configured and read including position, velocity and temperature.
The Serial protocol is daisy chained, meaning several servos can be connected to each other in a chain and offer several compliance and sensing parameters that can be configured and read including position, velocity and temperature.
SKU
R-902-0044-001

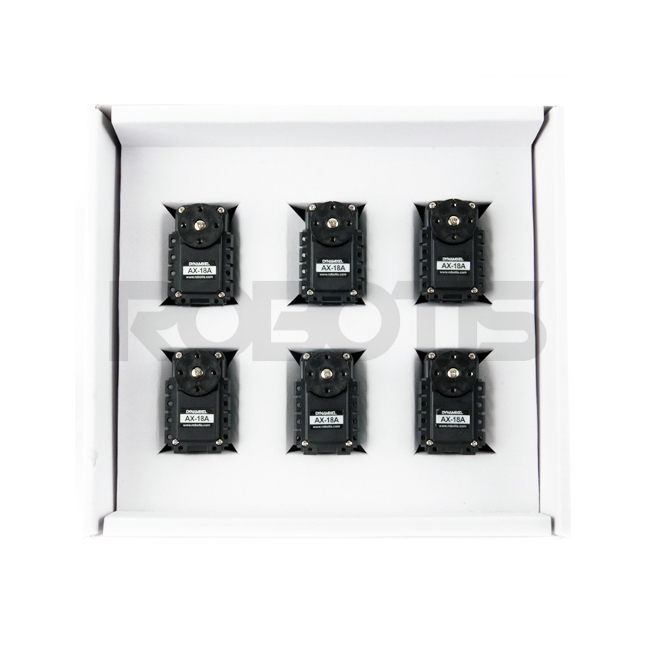

Robotis - Dynamixel AX-18A - Pack of 6
The AX-18A is a Serially Controlled servo that provides some 50 commands and feedback parameters to allow complete control over your robot application.
The Serial protocol is daisy chained, meaning several servos can be connected to each other in a chain and offer several compliance and sensing parameters that can be configured and read including position, velocity and temperature.
The AX-18A is a more powerful and faster version of the AX-12A for Robotics applications or specific joints that require a higher performing servo. Physical dimensions and control mechanism of the AX-18A and AX-12A are the same meaning they can be mixed and matched to meet the demands of today's Robotic applications.
This Pack is a Bulk package and consists of 6x Actuators, offered at a Discounted Price.
The Package does not include any accessories such as cables or screws. Cable Sets and Frame Sets are available separately to complete your Robot project.
Description
The AX-18A servo is faster and has more torque than the AX-12A (AX-18A - 18kgf/cm and 97 rpm vs. AX-12A - 15kgf/cm and 59 rpm) 100% compatible with all AX-12A brackets and accessories Upgrade your Bioloid kit into a powerful light weight robot 1,000,000 bps 1/2 duplex multi-drop serial bus. Programmable serial communication from 2400 to 1Mpbs Position, speed, load, voltage and temperature feedback 300 degree movement in 1024 increments Full control over speed and torque in 1024 increments Built in LED status indicator User configured automatic shutdown based on voltage, load or temperature Single cable network connection Programmable servo position range Complete with hardware, plastic brackets, and 3 wire AX-18A network cable
Kit Contents
AX-18A : 6 sets B01-HORN : 6 set (pre-installed)
This Pack is a Bulk package and consists of 6x Actuators, offered at a Discounted Price. The Package does not include any accessories such as cables or screws. Cable Sets and Frame Sets are available separately to complete your Robot project.
Specifications
| Product Name | AX-18A | ||
| Weight | 54.5g | ||
| Dimension | 32mm * 50.1mm * 40mm | ||
| Resolution | 0.29° | ||
| Gear Ratio | 254 : 1 | ||
| Stall Torque | 18kgf.cm(at 12.0V, 2.2A) | ||
| Running Degree | 0° ~ 300° | ||
| Endless Turn | |||
| Running Temperature | -5ºC ~ +85ºC | ||
| Voltage | 9 ~ 12V (Recommended Voltage 11.1V) | ||
| Command Signal | Digital Packet | ||
| Protocol Type | Half duplex Asynchronous Serial Communication (8bit,1stop,No Parity) | ||
| Link (Physical) | TTL Level Multi Drop (daisy chain type Connector) | ||
| ID | 254 ID (0~253) | ||
| Communication Speed | 7343bps ~ 1 Mbps | ||
| Feedback | Position, Temperature, Load, Input Voltage, etc. | ||
| Material | Engineering Plastic |
After purchase, please change ID and baud rate according to your use.
This package does not include frames, washer, bushing, nuts, cables, and bolts.
Accessories required for assembly are sold separately.
Compatible Products
Controller : CM-5, CM-510, CM530, CM-700, OpenCM9.04(+ OpenCM485 Expansion Board), OpenCR
Interface : USB2Dynamixel, U2D2
Factory Default Settings
ID : 1
Baud Rate : 1Mbps
(User can change various settings including ID and baud rate according to environment)
Caution
Only AX-series frames can be used. Optional frames for MX-series and X-series cannot be used.
