Robotis BT-410 Set

Robotis BT-410 serial via Bluetooth communication set

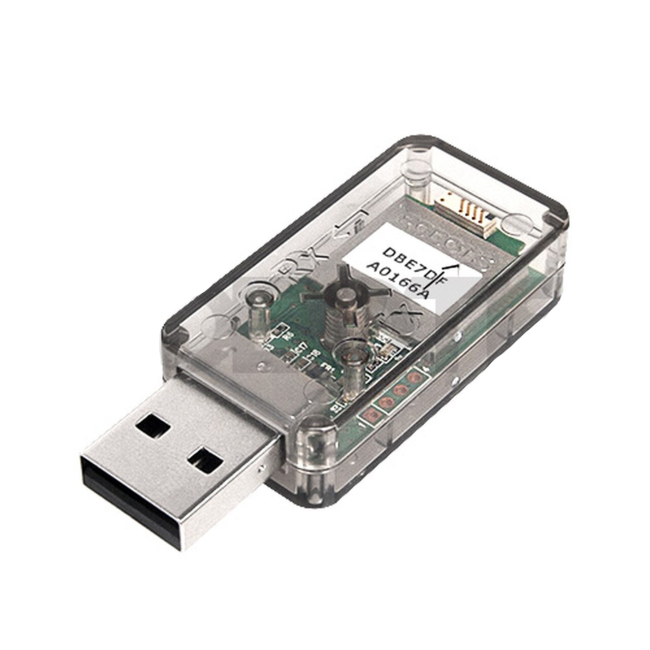

ROBOTIS BT-410 Dongle

£33.80 £28.17
BT-410 dongle converts two interfaces: USB 2.0 interface and Bluetooth 4.0 Low Energy interface (master function). That is, if you connect BT-410 dongle to the PC, it can be paired with BT-410 Slave module to exchange data (1:1 communication).
SKU
R-902-0131-000

■Caution

- Install the driver on your PC to use the BT-410 Dongle.



■Features

-BT-410 dongle converts two interfaces: USB 2.0 interface and Bluetooth 4.0 Low Energy interface (master function).

-That is, if you connect BT-410 dongle to the PC, it can be paired with BT-410 Slave module to exchange data (1:1 communication).



■Supported Communication Module

  • BT-410 Dongle Compatible Devices
    - BT-410 Slave module
  • BT-410 Dongle Incompatible Devices
    - BT-410 MASTER module
    - BT-210 MASTER module
    - BT-210 SLAVE module
    - BT-100/110A
    - ZIG-100/110A



■Supported PC

-Windows OS



■Package Contents

Description

Quantity

Wireless Communication Module

BT-410 dongle

1



■ H/W Specifications

Weight

7.5g

Size

50.5mm x 20mm x 10.5mm

Bluetooth Specifications

Bluetooth 4.0 Low Energy

Effective Communication Range

10m

Bandwidth Frequency

2.4 GHz ISM Band

Bandwidth

MAX 128kbps

Default Baud Rate

57600bps

Operating Voltage

5.0V

Consumed Current

25mA (Max)

Operating Temperature

-0℃ ~ 40℃

Baud Rate Range

1,200bps – 1,000,000bps

Antenna

Chip Antenna

Interface

USB 2.0 Full Speed

Sensitivity

-81dBm (Typical)

Antenna Power

-6~4dBm(Class 2)





■Compatible Controllers



Firmware Recovery

(Manager 2.0)

Firmware Update
(Manager 2.0)
Entry R+ Scratch Task 2.0
Download
Motion 2.0 Download
CM-50(PLAY700)

O

O

-

O

O

-

CM-150

O

O

-

-

O

-

CM-200

O

O

-

-

O

O

CM-530

O

O

-

-

O

O

OpenCM7.0

O

O

O

O

O

-

OpenCM9.04

O

O

-

-

O

O

Car Robot

-

-

O

O

-

-
