Features
- The HN13-C101 Set is a set consisting of a clamping horn, two bolts and a thrust washer designed for the DYNAMIXEL X540 models.
- The horn is to be connected to the wheel gear of the output shaft of the DYNAMIXEL.
- The bolt clamping structure allows the horn to be more engaged to the wheel gear and provides the effect of preloading the clamping force of the output shaft.
- When the output shaft wears out due to vibration and shock, the clamping bolt increases the clamping force for continuous use.
- When using LOCTITE on the screw, it can be tightened more firmly.
- This set is not compatible with the hinge frame, FR13-H101K Set. The hinge frame compatible with this clamping horn will be released soon.

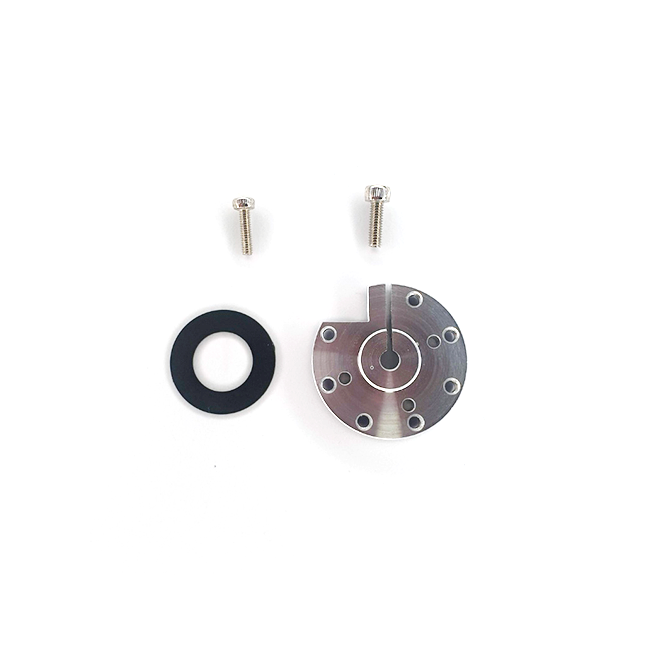

Package Contents
| Item Name | Quantity | Description |
|---|---|---|
| HN13-C101 | 1 | Clamping horn |
| Wrench Bolt WB M3x8 | 1 | Bolt for fastening horn to wheel gear |
| Wrench Bolt WB M2x8 | 1 | Bolt for clamping |
| Thrust Washer | 1 | Thrust washer |
Compatible DYNAMIXELs
All models in the XH540 and XM540 series

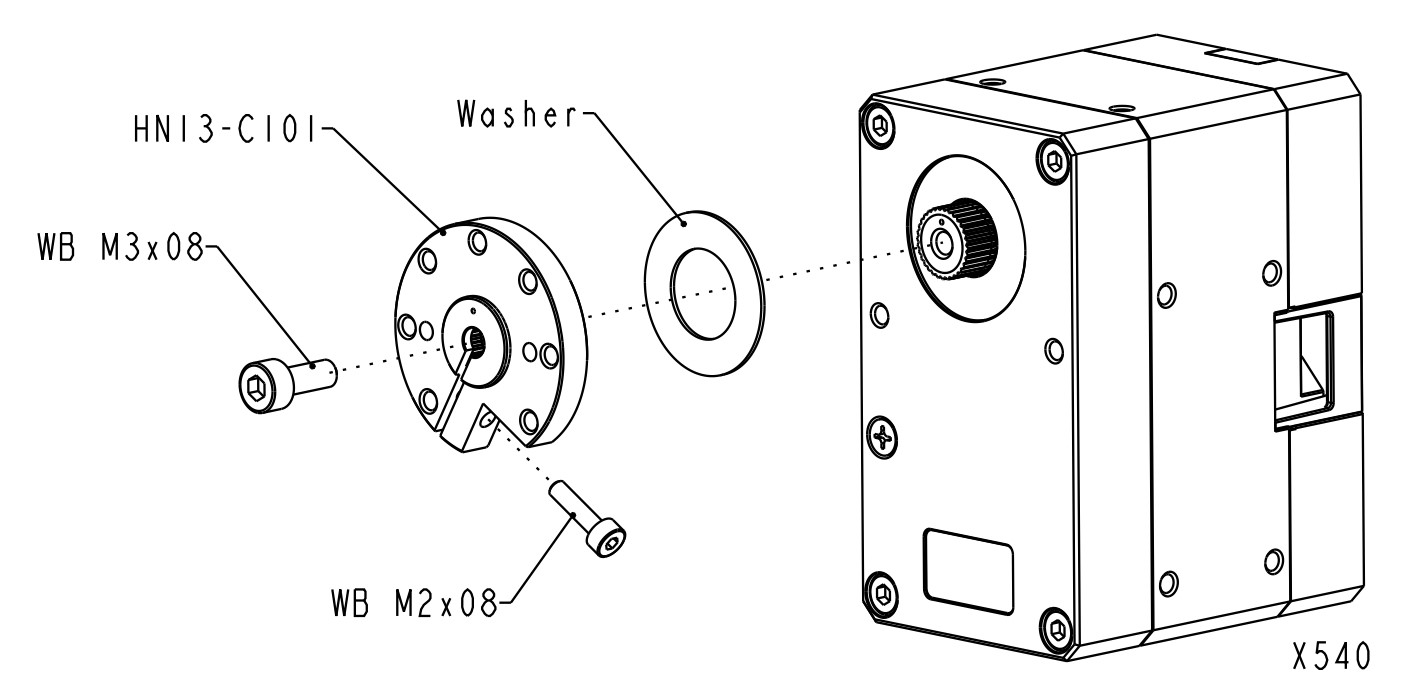

How to Use
Note
- Please note that the HN13-C101 Set is NOT compatible with the DYNAMIXEL MX-series.
- For XW, rust may occur depending on the operating environment, so it is recommended to use stainless-type screws.
Link
| Manufacturer | Robotis |
|---|
