Feature

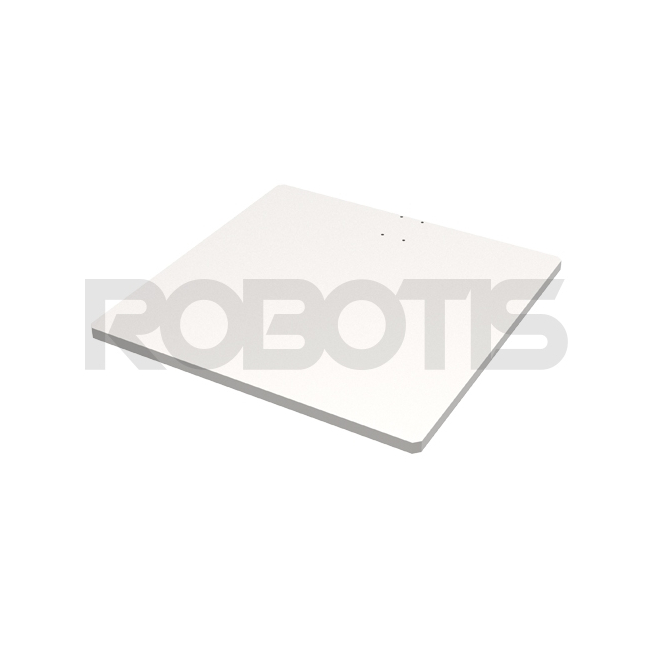

Base Plate-02 is made of aluminum and used for fixing OpenMANIPULATOR-X (RM-X52)
Can be used to install a manipulator on a table.
It can be fixed with a clamp. (Clamp is not included in this package)
Package Component
| Base Plate-02 | 1 |
|---|---|
| Wrench Bolt M2.5x20 | 6 |
| Spacer | 6 |
H/W Specification
| Size (mm) | 300 x 300 x 10 |
|---|---|
| Weight (kg) | 2.5 |

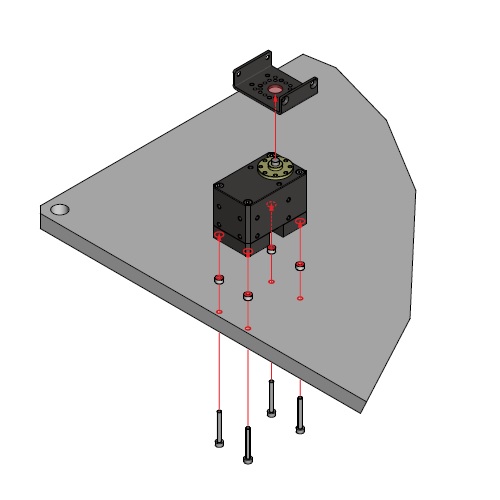

How To Assemble
Caution
Only
DYNAMIXEL X430 series can be assembled.
AX/MX-series, X540-series, and PRO-series cannot be used.

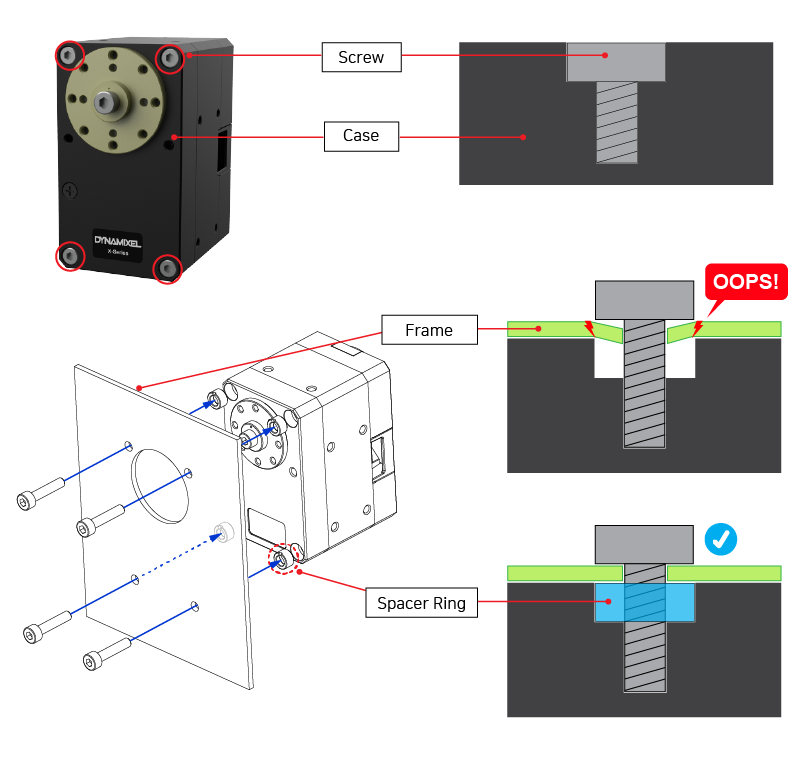

Includes screws and spacer rings in order to fix DYNAMIXEL to Base Plate-02
When assembling XL430, you can use the circular spacer ring included in this
package, or use the oval spacer included in XL430 package.
Link
- ○ Drawing
| Manufacturer | Robotis |
|---|
